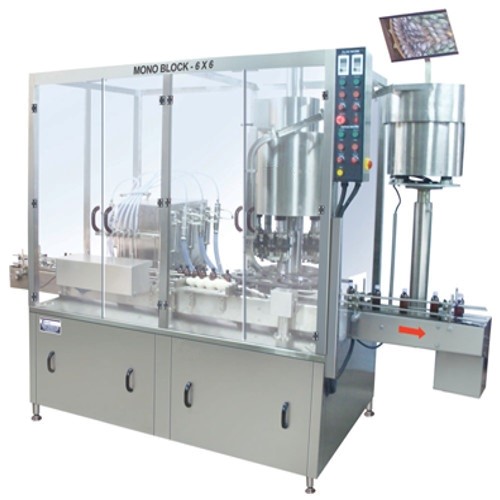

Volumetric Liquid Filling Cum Ropp Cap Sealing Machine – Automatic Monoblock

Automatic Volumetric Liquid Bottle Filling Machine, meticulously crafted for compactness, versatility, and elegance, enclosed in a sleek stainless steel matte finish body. This unit operates on the volumetric principle and features a reciprocating self-centering device.

The Automatic Cap Sealing Machine is precision-built on a robust welded steel frame, entirely enclosed in stainless steel sheeting. Conveniently designed doors are provided for easy machine servicing.

MODEL: MONOBLOCK – 6 HEAD

The filling nozzle rises gradually from the bottle’s bottom to its neck, minimizing spills. An adjustable nozzle ensures precise dosing by reciprocating during filling.

The dosing block, with a hexagonal bolt, allows quick and easy adjustment for different fill sizes.

The main drive, powered by an AC motor and controlled by a frequency drive, operates a helical gearbox. The conveyor, driven by a hollow shaft geared motor with an AC frequency drive, has adjustable speed via a knob.

Containers on the conveyor move to an infeed star wheel, positioning them under the sealing head. Simultaneously, a cap is picked up from the delivery chute, and the sealing head threads and seals it onto the bottle.

A specially designed hopper increases cap storage and delivers them precisely for optimal positioning.

Salient Features:

Crafted for compactness and versatility.
Efficient stainless steel slat conveyor.
Elegant matte finish for sophistication.
No-container no-filling system prevents spillage.
Precision with reciprocating filling nozzle.
Flexible operation with variable A/C frequency drive.
Enhanced material feeding with vibratory bowl.
Convenient front control panel for easy operation.
Efficient bottle handling with pneumatically operated bottle stopper.

Technical Specification:

Output	100-120BPM
Electrical Motor	3HP/440 Volts/ 3Phase/ 50 Hz (Four wire) For Main Machine 0.5 HP/440 Volts/ 3Phase/ 50 Hz (Four wire) For Conveyor
Conveyor Height	850 mm to 950 mm Adjustable.
Container Size	Ø 20 mm to Ø 100 mm,
Fill Size	10 ml to 500 ml (With the help of required change parts)
Overall Dimension	2525 mm(L) X 1050 mm(W) X 1400 (H) Approx
Accuracy	± 1ml
Height of container	50 mm to 210 mm Maximum, Option for other bottle height available.
Cap Size	22 mm to 56 mm (With the help of required change parts)
Electrical supply	3 Phase + Nutral + Earthing
Electrical load	2 KW
Air Pressure	Minimum: 5 Kg/cm2 (QTY: 5 C.F.M)

* Depending upon the tooling size, shape and material characteristics
Note: We reserve right to change specifications without any prior notice.
