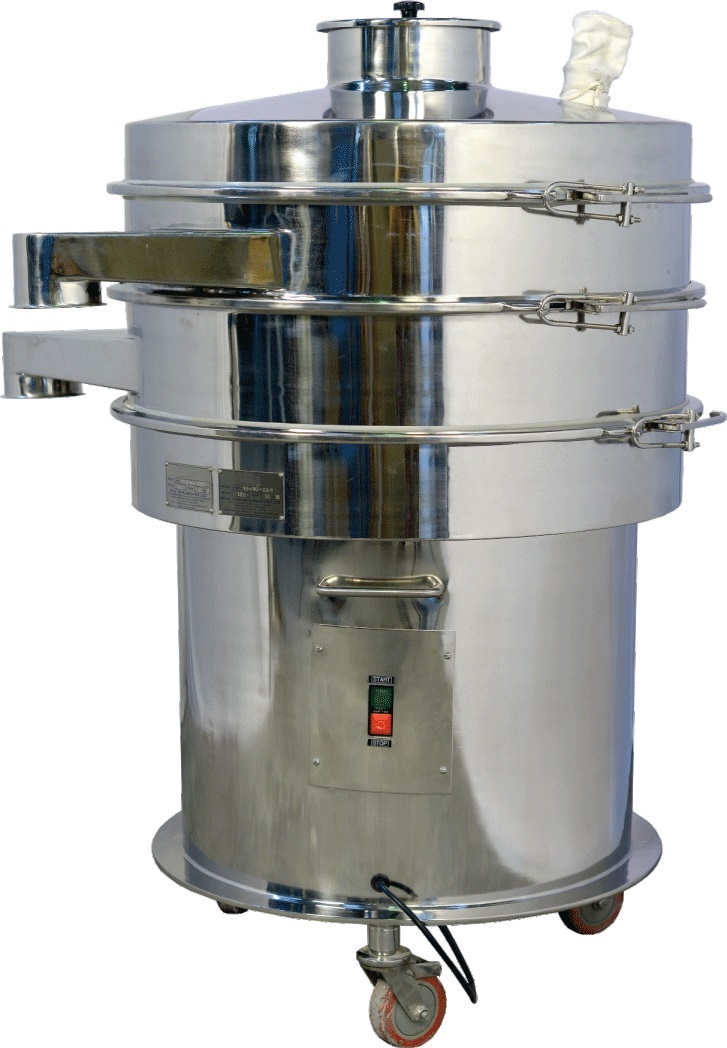

Vibro Sifter

Categories: ,

Vibro Sifter

Vibro sifters are essential equipment in industries such as food and chemicals, featuring gyratory screens that effectively separate solids in both coarse and fine sizes, as well as liquids from solids.

MODEL: 12″ TO 40″

Our Vibro Sifter is specifically designed for size separation applications, offering superior performance in the gradation and separation of powders, granules, and semi-solids. With its versatility and reliability, it serves as a trusted solution for achieving precise and efficient size separation in various industrial processes.

Salient Features:

  • Noiseless, maintenance-free, high-speed operation.
  • High capacity with efficient space utilization.
  • Process adaptability.
  • Low operating and maintenance costs.
  • Long screen life.
  • Easy assembly and disassembly for cleaning and screen changeover.
  • Springs amplify vibrations, reducing motor horsepower and operational costs.
  • Compact and portable design for easy operations.
  • Available in two, three, and four deck configurations.
  • Direct On Line (DOL)  starter provided with the unit

Optional / Additional Features:

  • Contact parts are made out of SS316 quality material instead of SS304.
  • Single Deck / Double Deck / Three Deck.
  • Wide range of seaves available in sizes from 4 mesh to 150 mesh

Technical Specifications:

Model 12” / 24″ / 30″ / 40″
Drive Motor 0.25 / 0.5 / 0.75 / 1.0 HP.
Screen diameter 300 / 600 / 750 / 990 mm (approx.)
Contact Parts SS304 ( SS316 Optional )
Output –       24″ : up to 150 Kgs./ Hr.

–       30″ : up to 200 Kgs./ Hr.

–       40″ : up to 300 Kgs./ Hr

* Depending upon the tooling size, shape and material characteristics
Note: We reserve right to change specifications without any prior notice.

Vibro Sifter

MODEL: 12” R&D

Special Features

  • High capacity and efficient space utilization.
  • Adaptability to various processes.
  • Low operating and maintenance expenses.
  • Durable screen life.
  • Ease of assembly and disassembly for cleaning and screen changes.
  • Springs amplify vibrations, reducing motor and operational costs.
  • Compact design for ease of operation.
  • Configurations available in two, three, and four decks – Optional.
