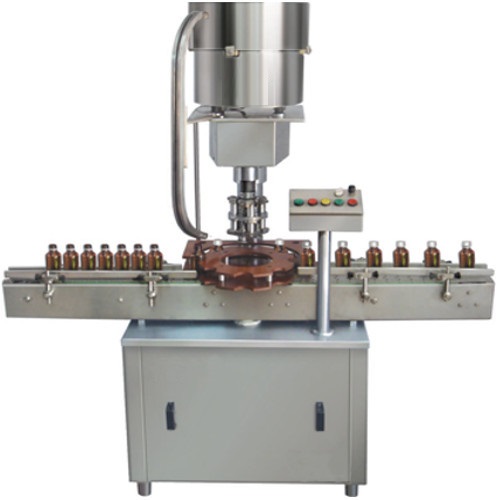

Single Head ROPP Capping or Screw Capping Machine – Automatic

The Automatic Single Head ROPP CUM SCREW Capping Machine is thoughtfully engineered, employing a single motor to harmonize the synchronization of the conveyor, star wheels, and platform turret. Achieving an output of 60 bottles per minute, contingent on the container diameter, this machine prioritizes efficiency.

Its versatility spans various container shapes, accommodating both round and square designs with minimal change parts. Constructed from aluminum alloy, the machine is designed for easy maintenance and prolonged durability. Furthermore, it offers customization options, including either an Acrylic safety cabinet or a Toughened glass safety cabinet, enhancing safety features for diverse operational needs.

Salient Features:

Designed for varying production needs with compact adaptability.
Efficient single motor synchronization for seamless operation.
Energy-efficient design with low power consumption.
Prevents errors with no-bottle, no-cap system.
Enhances safety with no-bottle, machine-stop system.
Stainless steel construction for durability and hygiene.
Control and adjustment of sealing pressure.
Quick format changeover for increased efficiency.
Hopper dismantles easily for convenient cleaning.

Technical Specification:

Output	Up to 60 / Minutes
Electrical Rating	1 HP,440 Volts,3 Phase,50 Hz
Cap Diameter	22mm to 100mm,with help of change parts
Container	(A) 22mm to 100mm (Diameter) (B) 50mm to 210mm (Height) option for other bottle height available
Height of conveyor	750mm to 840mm
Machine Dimensions in mm	1500 (L) X 680 (W) X 1300 (H)
Case Dimension in mm	1600 (L) X 800 (W) X 1400 (H)
Net Weight in Kgs	300 Kgs Approx
Gross Weight in Kgs	450 Kgs Approx
Change Parts requirement	(A) Container:- Star wheel,Back guides (B) Cap size :- Pluger, Delivery Chute, Vibratory Bowl (For Two nearest cap size is common can use)

* Depending upon the tooling size, shape and material characteristics
Note: We reserve right to change specifications without any prior notice.
