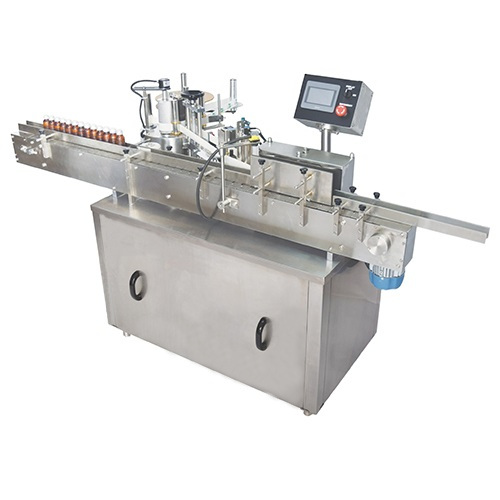

Self Adhesive Sticker Labeling Machine For Vials / Bottles – Automatic

The Automatic Sticker Labelling Machine is designed for labeling on round vials and bottles. Featuring a state-of-the-art microprocessor control label dispensing system and a user-friendly sensing system for both label and product, this machine ensures accurate and efficient labeling. With a labeling capacity of up to 200 units per minute, contingent on product diameter and label size, it offers high-speed performance. Suitable for vials and bottles made from glass, plastic, PET, HDPE, PP, and other materials, this machine operates within a speed range of 60 to 200 products per minute.

MODEL: 200

Salient Features:

  • Achieves up to 200 containers per minute for higher output.
  • Simplifies operation with no change parts required.
  • Added convenience and efficiency with online printing device.
  • Hygienic design with S.S. 304 construction conforming to GMP standards.
  • Enhanced labeling accuracy with secondary pressure unit.
  • Easy adjustments with single-point online speed variation control.
  • Smooth and controlled operation with in-built A.C. frequency drive.
  • Eliminates manual input with auto label length detection system.
  • Ensures quality and reliability with European-sourced electrical items and motor.
  • Prevents wastage and ensures accuracy with no-label, no-bottle feature.

Technical Specification:

Output / Minute 60 to 200 Round containers. (Depending on the size of the container and label length.)
Label Size
Label Roll Diameter Maximum 400 mm
Labeling direction Left to right
Label lengths 20 mm to 200 mm
Max label stock [Roll] Diameter 400 mm
Core Diameter Of label Stock [Roll] 76 mm
Round Container Size
Diameter : 14 mm to 100 mm
Height : 30 mm to 180 mm
Electrical Components 230 V, AC, 50 Hz
Main drive motor Make 0.25 HP
RPM and Rating 1440 RPM
Steeper Motor. 6 V DC, 2 Ampere.
Gear box make [with variable speed] Bonfiglioli
Product Sensor Banner Make – Germany.
Label sensor Banner Make – Germany.
Operating Panel Consist of PLC with micro processor control.
Utilities Required
Power supply 440 V, 3 Phase, 50 Hz
Air supply 4 kg / cm² [For printing device]
MOC
Non contact parts SS304 – 180 Grif matt finish
Gasket Food Grade Silicone
All Piping Food grade material
Overall Dimension 1950 mm(L), 950 mm(W), Height 800 mm to 850 mm adjustable.

* Depending upon the tooling size, shape and material characteristics
Note: We reserve right to change specifications without any prior notice.
