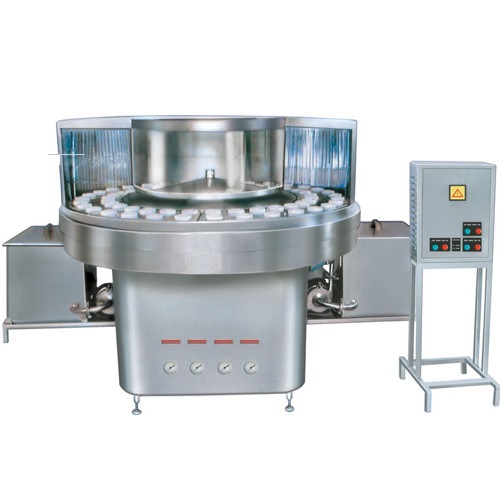

Rotary Bottle Washing Machine 64 Stations/96 Station

Introducing our Rotary Washing Machine designed for Vials and Bottles, adhering to Good Manufacturing Practice (GMP) standards. This compact and operator-friendly model features an elegantly matte-finished stainless steel body. It operates as a Semi-Automatic Machine with a user-friendly manual loading and unloading system for bottles.

The machine is equipped with a rotating platform and specially designed bottle holders to accommodate bottles with varying neck diameters. Bottles are loaded manually, inverted in the cup-shaped holders. External cleaning is facilitated by spraying showers, and solenoid valves are incorporated to regulate wash timing and sequence using different wash media.

MODEL: 64/ 96

Salient Features:

Three inner, one outer, and one air wash cycles.
Customizable wash sequence.
User-friendly operations.
Bottle guide system for lightweight bottles.
Stationary nozzles prevent water cycle contamination.
Individual solenoid valve for each wash, preventing leakage.
Minimal maintenance required.
Higher capacity centrifugal pumps for larger bottles (500 & 1000 ml).
Stationary nozzles prevent chipping of bottle necks.
Portable stand for easy maintenance of pumps and tanks.
Two built-in 70-liter stainless steel water tanks.

Technical Specification:

Specifications:	Rotary Bottle Washing Machine 64 Stations	Rotary Bottle Washing Machine 96 Stations
Wash Cycle/ Consumption of Water	First Wash:- 300 Ltrs/Hour Approx at 15 PSI.(Detergent Water). Second Wash :- Minimum Consumption as such, water loss during recirculation shall be compensated.(Steam/Hot Water). Third Wash:- 600 Ltrs/Hour Approx at 15 PSI.( D.M. or DL. Water). Fourth Wash:- 15 PSI ( Hot Air For Drying System ). OUT SIDE WASH :- 800 Ltrs/Hour Approx at 15 PSI (Ordinary Water).	First Wash :- 400 Ltrs/Hour Approx at 15 PSI.(Detergent Water). Second Wash :- Minimum Consumption as such, water loss during recirculation shall be compensated.(Steam/Hot Water). Third Wash :- 700 Ltrs/Hour Approx at 15 PSI.( D.M. or DL. Water). Fourth Wash :- 15 PSI ( Hot Air For Drying System ). OUT SIDE WASH :- 1200 Ltrs/Hour Approx at 15 PSI (Ordinary Water).
Output	64 to 100 Bottles/Minute	96 to 150 Bottles/Minute
Container Size	Outside Diameter Ø 25 mm to Ø 100 mm, Maximum Height 280 mm	Outside Diameter Ø 28 mm to Ø 85 mm, Maximum Height 280 mm
Overall Dimension	1550 mm(L) X 1700 mm(W) X 1300(H) Approx	1550 mm(L) X 1700 mm(W) X 1350(H) Approx
Net Weight	750 Kg Approx.	900 Kg Approx.
Electrical Heater Tank	3 KW. (For Hot Water)
Total Electrical Load	5 KW
Electrical Motor	0.5HP/440 Volts/ 3Phase/ 50 Hz/1400 RPM (Four wire) For Main Drive. 1 HP/440 Volts/ 3Phase/ 50 Hz/2800 RPM (Four wire) For Water Pump.
Container’s Neck Size	Ø 20 mm to Ø 38 mm (With the help of required change parts)
Utility Requirement
Electrical supply	3 Phase + Neutral + Earthing
Air Pressure: Minimum	5 Kg/cm2 Qty: 5 C.F.M

* Depending upon the tooling size, shape and material characteristics
Note: We reserve right to change specifications without any prior notice.
