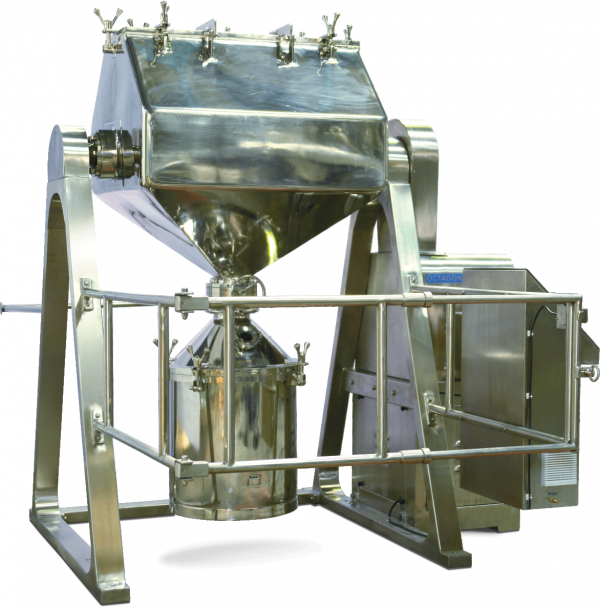

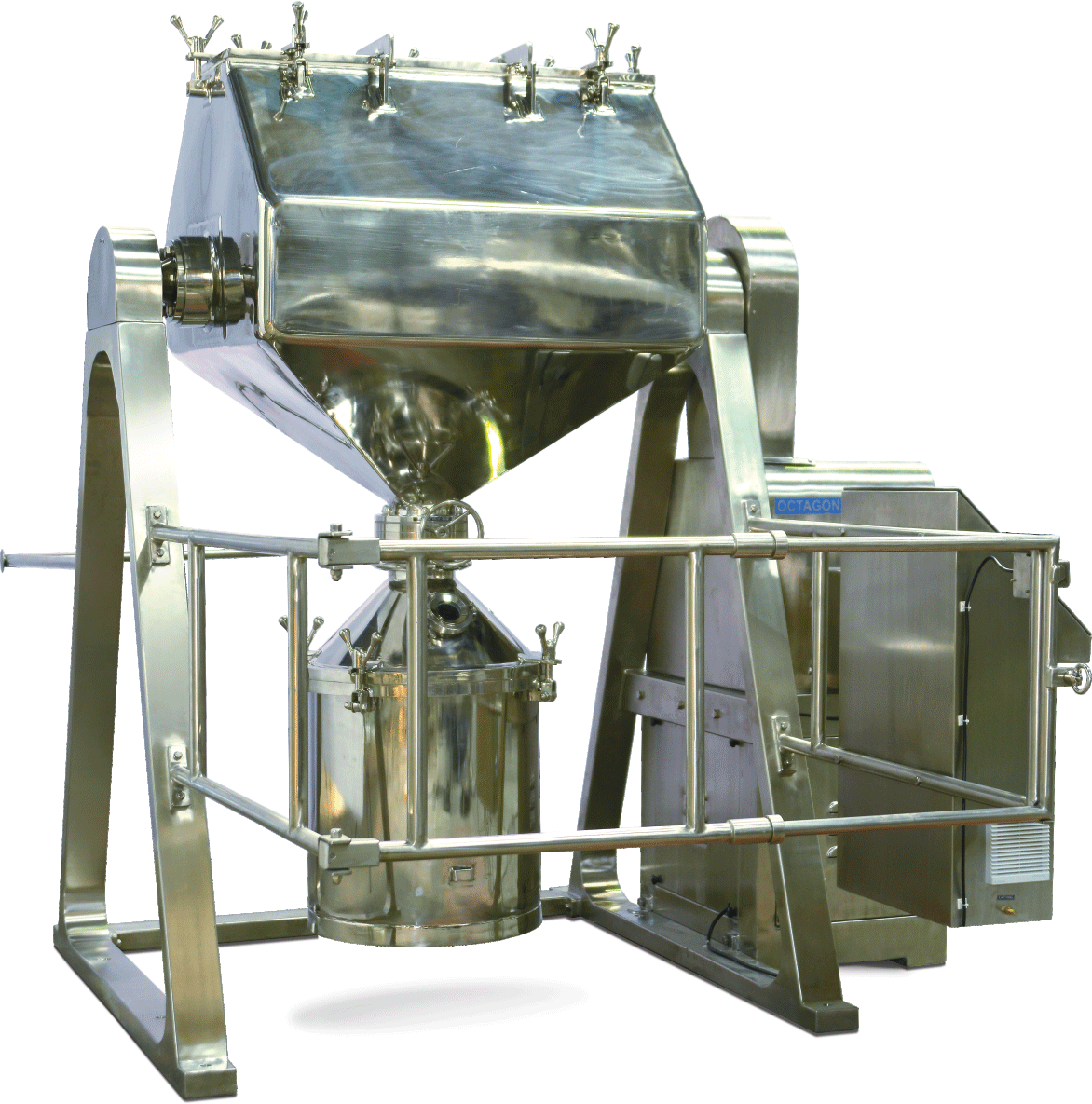

Octagonal Blender

The Octagonal Blender is a versatile equipment suitable for pharmaceutical, food, chemical, and cosmetic products, among others.
It is primarily used for the mixing and lubrication process of dry granules, ensuring homogeneous blending. This blender is particularly suitable for crystalline and granular type materials. Its octagonal shape allows granules to come in from all sides, reducing the required RPM (Revolutions Per Minute) for effective blending.

MODEL: 300 TO 700 LTR

Salient Features:

Octagonal shape and slow rotation ensure continuous movement, leading to high-quality granules.
Suitable for dry mixing of products in granule form.
Easy loading, unloading, and cleaning.
All contact parts made of SS304, with optional SS316.
Simple design with minimal maintenance requirements.
Standard model features mild steel structure and colored safety guards; GMP model features polished SS304 structure.
Emphasis on safety measures for operational integrity.
Manual rotating facility for precise inching.
Capable of processing larger batches with low power consumption.

Optional / Additional Features:

Contact parts made out of SS316 instead of SS304.
Flame proof drive motor along with flame proof starter.
Vacuum Loading facility for material charging.
Cylindrical container with cone for material charging.

Octagonal Blender R & D MODEL

MODEL: 02 TO 25 LTR

Salient Features:

Three phase Indicating lamp
Panel made out of SS304
Timer and RPM display

Technical Specification:

Gross Capacity in Ltr. :	02 to 25 Liters
Working Capacity in Kg. :	500 Gm. to 10 Kg.
Drive Motor :	0.5HP/3ph/TEFC
Approximate R.P.M. :	0 to 44 FOR 60 Hz or 0 to 37 FOR 60 Hz
Contact Parts :	SS304/SS316/SS316L
General Structure :	Made out of SS304 Material
Safety Guards :	SS304
Discharging :	38 to 50 MM Butter Fly valve

* Depending upon the tooling size, shape and material characteristics
Note: We reserve right to change specifications without any prior notice.

Octagonal Blender
