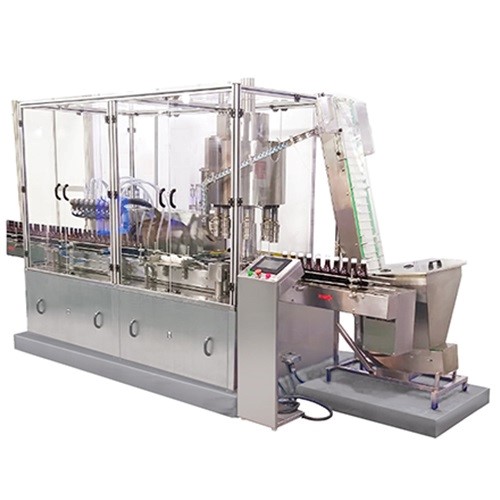

Monoblock Liquid Filling (Servo Drive) cum ROPP Cap sealing Machine – Automatic

Category:

Monoblock Liquid Filling (Servo Drive) cum ROPP Cap sealing Machine – Automatic

The automatic rotary monoblock liquid filling (Servo Drive) cum ROPP cap sealing machine is available with 4×4, 6×6, or 8×8 heads, offering versatile operation.

The machine features a rotary operation for bottles, ensuring smoother movement at lower speeds and increased output. The output of bottle filling machines varies depending on factors such as the nature of the liquid, bottle diameter, height, neck size, and fill volume. Its construction includes a fully stainless steel finish, with a heavy-duty M.S. frame structure and SS 304 cladding, while all parts in contact with liquid are crafted from SS 316 material.

MODEL: MONOBLOCK  – 4×4 / 6×6 / 8×8 HEAD

The machine benefits from servo drive technology, eliminating the need for change parts when adjusting fill volume. Users can easily set the required fill volume from the machine’s control panel touch screen system. With straightforward and user-friendly operation and fewer moving parts in contact with liquid, it offers simplicity and ease of use. Additionally, it ensures a higher level of accuracy for liquid filling, enhancing overall efficiency and productivity.

Salient Features:

  • Precision filling activated only when bottles are present.
  • Automatic stoppage if no bottles detected, preventing wastage.
  • Electronically controlled volume setting via HMI for precision.
  • Flow meter ensures high fill accuracy and repeatability.
  • User-friendly PLC with color touch screen interface.
  • Rotary bottle movement for smoother operation.
  • SS316 contact parts with easy removal for cleaning.
  • Handles syrup and suspension with higher viscosity.
  • AC variable frequency drive system for adjustable speed control.
  • Compatible with ROPP and normal screw caps with change parts.
  • Optional pick and place screw capping for CRC/special caps.

Technical Specification:

Output/Hour 4X4 Head

UPTO 6000

 6X6 Head

UPTO 9000

 8X8 Head

UPTO 12000
Conveyor motor 0.5 HP, 1440 RPM ,440 Volts/ 50 Hz 3 phase
Over all dementias 3648 mm (L) x 1216 mm(W) x 2280 mm (H)
Conveyor height 850mm TO 950 Adjustable.
Container size: 30 mm diameter. TO 100 mm diameter.
Maximum height 210 mm.
Filling size 10 ml TO 500ML.
Net Wight 1500 kg approx.

* Depending upon the tooling size, shape and material characteristics
Note: We reserve right to change specifications without any prior notice.
