Colloid Mill

Category:

Colloid Mill

Colloid Mill  is suitable for formulation of Colloidal dispersion, Suspension, Emulsion and Ointment.

Machine is also suitable for, veterinary, and ayurvedic industries.

Colloid Mill is used for grinding, disersing, homgenizing the ointment , gels and high viscous fluid .It has grinding accuracy of 5-10 microns which can be adjusted as per need.

Machine has  specially designed conical-shaped stator and rotor assembly.

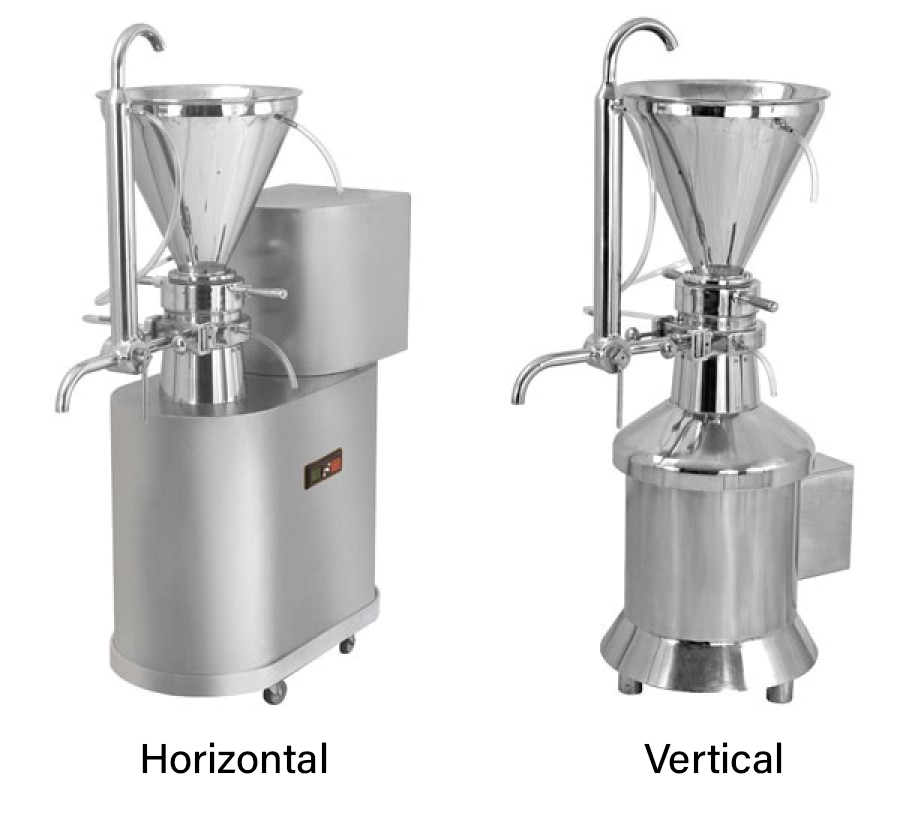

MODEL: Horizontal / Vertical

Salient Features:

  • All contact parts of colloid mill made of AISI 316 and non-contact parts made of SS 304 material.
  • Circular ring-shaped, internally conical stator with two different tooth stages.
  • Stator and rotor assembly balanced and housed in stainless steel housing.
  • Special design allows adjustment of grinding gap by an exterior screw with two handles even during operation.
  • Three-way cock system provided for draining and recirculation of liquids in water-jacketed models.
  • Easy to dismantle all contact parts for cleaning
  • Silicon food-grade seal
  • Special design allows adjustment of the grinding gap by an exterior screw with two handles even during operation.
  • Equipped with a food-grade silicon seal for safety and hygiene.

Technical Specification:

COLLOID MILL MODEL 250 500 1000
Output – Liter / Hour 100 to 1500 150 to 2500 250 to 5000
Drive type Option Vertical OR Horizontal Vertical OR Horizontal Vertical OR Horizontal
Rotor Speed- RPM 2800 2800 2800
Hopper Capacity (Liter) 15 15 25
Seal Type Rubber Silicon Rubber Silicon Mechanical
Partial Size Reduction (Micron) 5 to 10 5 to 10 5 to 10
Electric Motor (HP/ KW) 3 / 2.25 5 / 3.75 10/7.5

* Depending upon the tooling size, shape and material characteristics
Note: We reserve right to change specifications without any prior notice.

Note:

  1. Output is subject to the viscosity and quality of the material.
  2. Colloid Mill is available in standard and GMP models.
  3. Colloid Mill is available with and without water jacketed hopper.
  4. Colloid Mill is also available in flameproof model.
