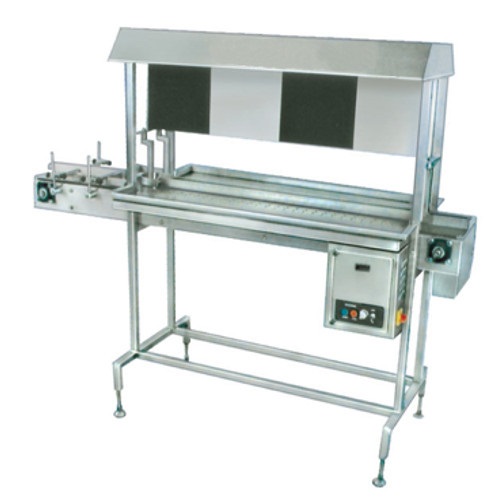

Bottle Inspection Belt

The Manual Vial/Bottle Inspection Machines are an economical series of inspection machines designed for vials/bottles. Equipped with a black and white board with proper illumination, these machines facilitate the inspection of impurities in filled vials/bottles. The machine features a conveyor divided into three partitions, with the main middle portion receiving vials from the upstream machine for inspection, while the two side conveyors transport checked vials for auxiliary processing to downstream machines. Constructed from Stainless Steel 304, these machines ensure durability and reliable performance.

Salient Features:

User-friendly design ensures ease of operation for operators.
PVC black and whiteboard enables efficient vial/bottle inspection.
Elegantly finished with a matte surface for aesthetic appeal.
Adjustable conveyor belt height for flexibility.
Minimal maintenance required, reducing downtime and costs.
No change parts needed, simplifying operation and maintenance.
Durable Stainless Steel 304 construction for longevity and corrosion resistance.
Provides reliable performance with moderate trouble-free operation.
Available in various models to suit different seating arrangements and production needs.

Technical Specification:

8 Feet Length
Output	Up to 250 Container/minute
Number Of Operator	Six (3 X 2, two side seated).
Power Characteristics	220 Volts,Single Phase,1.0 H.P,50 Hz
Machine Dimension	2440 mm (L) 760 mm (W) X 1325 mm(H)
Case Dimension	2616 mm (L) X 915 mm (W) X 1420 mm (H)
Net Weight	225 Kgs

* Depending upon the tooling size, shape and material characteristics
Note: We reserve right to change specifications without any prior notice.

6 Feet Length
Output	Up to 150 Container/minute
Number Of Operator	Four (2 X 2,two side seated)
Power Characteristics	220 Volts,Single Phase,0.5 H.P,50 Hz.
Machine Dimension	1830 mm (L) X 760 mm(W) X 1325 mm (H)
Case Dimension	2080 mm (L) X 915 mm(W) X 1420 mm (H)
Net Weight	200 Kgs.

* Depending upon the tooling size, shape and material characteristics
Note: We reserve right to change specifications without any prior notice.
