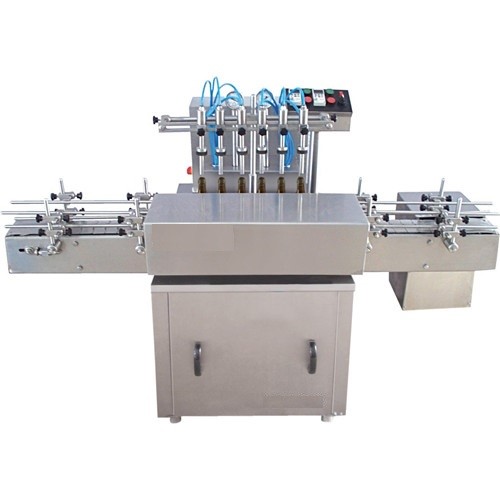

Explore our Linear Bottle Air Jet Cleaning Machine – a compact, highly efficient, and elegantly designed solution. This multi-functional, feature-rich machine is tailored to meet the Good Manufacturing Practice (GMP) standards for cleaning plastic bottles.
Operating on the linear principle with an air and vacuum mechanism, the machine executes a slow, upward nozzle movement from the bottle’s bottom towards the neck. This process employs vacuum air to thoroughly clean the bottle.
MODEL: 4/6/8
The machine’s main drive utilizes a helical gearbox, powered by an A/C motor and controlled through an A/C frequency drive. The speed is adjustable in terms of bottles per minute. The conveyor drive, featuring a hollow shaft geared motor, is also controlled by an A/C frequency drive, with speed easily adjustable using a convenient knob.
Salient Features:
Technical Specification:
| Wash | 15 PSI ( 0-22 Micron Filter Air). | ||
| Electrical Motor | 1HP/440 Volts/ 3Phase/ 50 Hz (Four wire)
For Main Machine. 0.5 HP /440v 3 phase for conveyor 0.5 HP/ 440v 3 phase for vacuum pump |
||
| Container Size | Ø 25 mm to Ø 100 mm, Maximum Height 280 mm | ||
| Container’s Neck Size | Ø 20 mm to Ø 50 mm, Maximum Height 280 mm
(With the help of required change parts) |
||
| Overall Dimension | 1525 mm(L) X 1050 mm(W) X 1400(H) Approx | ||
| Electrical supply | 3Phase + Neutral + Earthing | ||
| Electrical load | 2 KW | ||
| Air Pressure Minimum | 8 Kg/cm2 (QTY: 5 C.F.M.) | ||
| Vacuum Pump | 300Liters Capacity |
* Depending upon the tooling size, shape and material characteristics
Note: We reserve right to change specifications without any prior notice.
