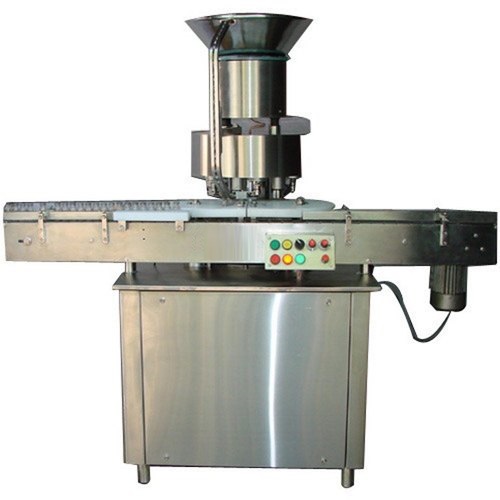

Aluminium Vial Cap Sealing Machine – Automatic

The machine is engineered to efficiently seal both ordinary and flip-off vial caps. With the flexibility to handle various sizes of vials ranging from 2 ml to 60 ml, this machine employs standard change parts, ensuring minimal changeover time. Capping is achieved through a unique mechanism involving vial rotation and single roller seals, eliminating the need for rotary and transitional motion of the rotary head. The sealing process entails only the up-and-down motion of a rotary pressure pad and the movement of a sealing roller while the vial rotates, ensuring precise and reliable sealing without unnecessary complexity.

MODEL: 4/6/8

Salient Features:

Minimal space occupancy with compact design.
Ensures quality and regulatory compliance with cGMP standards.
Prevents capping without vial presence, minimizing errors.
Optional feature halts operation when caps are missing for safety.
Single motor synchronization streamlines operation.
Adjustable conveyor belt height for container size flexibility.
Customizable sealing pressure for optimal performance.
Increased bowl storage capacity with specially designed hopper.
Operates quietly with low noise and energy consumption.

Technical Specification:

Model	4 Head Model	6 Head Model	8 Head Model
Output/ hrs	Up to 6000 vials	Up To 9000 vials	Up to 12000 vials
Motor	1HP/440 Volts/50 Hz	1.5 HP/440V/50 Hz.	1.5 HP/440 Volts/50 Hz.
Cap Size	13 mm to 32mm (With the help of change parts)
Vial Size	Diameter: 14 mm to 37 mm Height: 35 mm to 63 mm (With the help of change parts)
Vial Type	Glass Round Shape ( Modular & Tubular)
Accuracy	± 2% Depending upon vial & cap quality.
Height Of Conveyor	750 mm to 840 mm adjustable.
Weight	500 Kgs Approx.
Overall Dimensions	1600 mm(L) X 600 mm(W) X 2000 mm(H)

* Depending upon the tooling size, shape and material characteristics
Note: We reserve right to change specifications without any prior notice.
